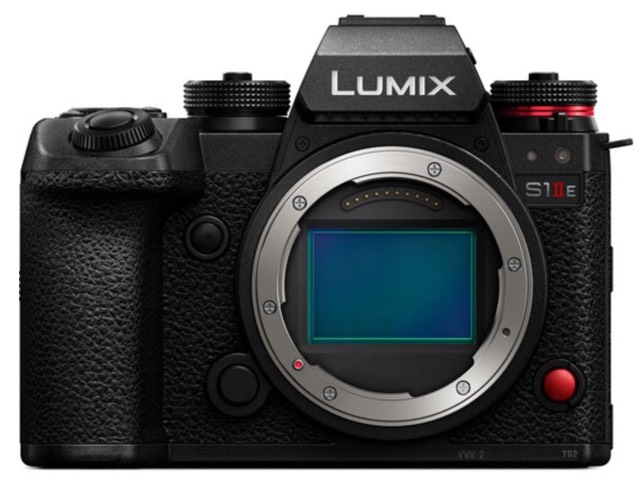

Panasonic S1IIE Camera Specifications

bythom pan s1iie

The S1IIE somehow seems to slot between the S5II and the S1II, even though there isn't a lot of space there.

  • Sensor
    • 24.2mp CMOS sensor
    • 35.6x23.8mm (full frame)
    • Bayer color filtration with no AA filter
    • sensor-based stabilization (5 Axis, up to 8 stops CIPA).
  • ISP: Unspecified new Venus image processor
  • Mount: L mount
  • Images:
    • Size/Type: 6000x4000 pixel JPEG, HLG, 14-bit RAW
    • Aspect ratio support: 1:1, 4:3, 3:2, 16:9, 65:24, 2:1
    • Frame rate: up to 10 fps mechanical, plus 30 fps electronic
    • Pre-burst capture: up to 1.5s
    • Buffer:
  • Video:
    • 6K/30/24 (3:2 open gate, max 200Mbps, 10-bit 4:2:0 Long GOP H.264 or H.265 (HEVC)
    • 6K/60 2.4:1 aspect ("cinemascope")
    • 5.8K/30
    • 4K/60/50/30/24
    • FullHD/60/50/30/25/24
    • V-Log, V-Gamut, HLG included
    • Internal raw recording (Pro-Res Raw to CFe slot)
    • AAC or PCM stereo sound
    • Waveform monitors
    • mic and headphone jacks
    • optional DMW-XLR2 for XLR mics with 32-bit float recording support
  • Shutter:
    • mechanical 30 sec to 1/8,000 sec
    • electronic shutter 60 sec to 1/8,000, bulb (EFCS tops at 1/2000)
    • 1/250 flash sync speed (with GN reduction at 1/250)
  • Exposure:
    • matrix, center-weighted, spot metering, highlight-weighted
    • -5 to +5EV exposure compensation
    • 5 white balance settings (plus Auto, Custom)
    • ISO
      • Dual native
      • Stills: base 100, 640; 50-204800, AutoISO
      • V-Log: base 640, 4000; 320-51200, AutoISO
      • HLG: base 400, 2500; 400-204800, AutoISO
    • Live View composite mode
  • Focus:
    • 779 point phase detect and DFD detect system
    • single area, pinpoint, zones, tracking, manual focus override
    • Human, animal subject detection
    • -6 to 18 EV focusing (at f/1.4 ISO 100)
    • Focus bracketing
  • Rear Display:
    • 3.2” 2.1m dot
    • tilt+articulating
    • touch-screen LCD
  • Viewfinder
    • OLED EVF
    • 5.76m dot
    • 0.78x magnification
    • 21mm eye point
    • -4 to +2 diopter
    • 60/120 fps refresh
  • Flash:
    • no internal flash
    • hot shoe
    • red-eye reduction, slow sync, rear sync
    • Supports wireless flash with appropriate model
  • Remote: optional DMW-RS2, operation via smartphone
  • Connectivity:
    • Bluetooth 5 BLE
    • Wi-Fi 802.11b/g/n or 802.11a/c
    • USB 3.2 Gen 2 Type C
    • HDMI (Type A connector)
  • Cards:
    • Two slots, one CFexpress Type B, one SD
    • SD UHS-II compatible
  • Battery:
    • DMW-BLK22
    • 380 shots CIPA
    • USB charging (no charger supplied)
    • Will run off USB (Power Delivery)
  • Size and Weight:
    • 5.3” (134mm) wide
    • 4” (102mm) tall
    • 3.5” (92mm) deep
    • 28 ounces (795g, including battery and card)
  • Other:
    • Live View Composite mode
    • dust and splash resistant construction
  • Price:
    • US$2499 body only
  • Announced: May 13, 2025
  • Current Firmware: 1.00
