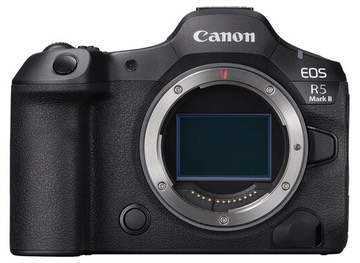

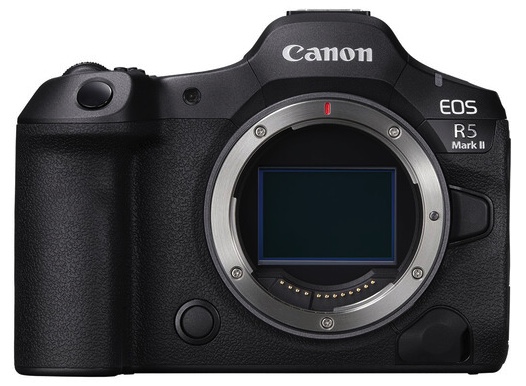

The EOS R5 II is a refresh of Canon's top full frame hybrid mirrorless camera, and uses the RF mount.

• Sensor:
  • 45mp CMOS sensor
  • 35.9x24mm (full frame)
  • Bayer color filtration
  • AA filter
  • sensor-based IS (8.5 stops with RF lens IS also enabled)
• ISP: DIGIC X
• Mount: Canon RF
• Image Size/Type:
  • 8192 x 5464 pixel JPEG, HEIF
  • 14-bit CR3
  • C-RAW raw (smaller size); supports HDR PQ
  • 1:1, 4:3, 3:2, 16:9 aspect ratios
• File Size: ? JPEG Large Fine ?MB, ? RAW ?MB
• Continuous Shooting:
  • 12 fps max with mechanical shutter
  • 30 fps with electronic (silent) shutter
• Buffer:
  • 230 images raw lossless 12 fps mechanical (CFe slot)
  • 580 images raw lossy 12 fps mechanical (CFe slot)
  • 93 images raw lossless 30 fps electronic (any slot)
  • 170 images raw lossy 30 fps electronic (any slot)
• Aspect ratio support: 1:1, 4:3, 3:2, 16:9, 1.6x crop
• Internal Video:
  • 8K/25/30 (no crop, 12-bit raw internal), both DCI and UHD
  • 4K/120/60/50/30/25/24 (no crop (some oversampled, some subsampled)
  • 10-bit 4:2:2 C-Log; uncompressed 4K/60 over HDMI
  • C-Log2, plus XF-AVC S and XF-HEVC S formats
  • 1080P/60/50/30/25/24 max 60Mbps
  • ALL-I (requires CFe card)
  • IPB compression H.265 in MP4 format
  • AAC or PCM stereo sound
  • note IS is 5 stops in video and performs a slight crop
  • Video+stills feature (video capture on one slot, 8K JPEGs on the other)
• External Video: 8-bit 4:2:2 4K output on HDMI port
• Shutter:
  • mechanical 30 sec to 1/8,000 sec, bulb
  • electronic 30 sec to 1/32000
• Exposure:
  • matrix, center-weighted, spot metering
  • -3 to +3EV exposure compensation
  • 6 white balance settings (plus Auto, Custom)
  • ISO 100-51200 (+50, 102400, AutoISO)
• Focus:
  • 5850-points
  • hybrid dual pixel phase detect/contrast detect
  • single area, multi-area, face tracking, eye/head/animal detect AF, manual focus override
  • -6 to 20 EV focusing
  • focus coverage near 100%/100% vertical/horizontal
  • focus bracketing
• Rear Display: 3.2” 2.1m dot articulating touch-screen LCD
• Viewfinder:
  • 5.76m dot OLED EVF
  • .76x magnification
  • 23mm eyepoint
  • -4 to +2 diopter
  • 120fps refresh possible)
  • supports 5x/10x view
• Flash:
  • hot shoe
  • 1/250 flash sync (mechanical; 1/160 electronic)
  • will work with other Canon E-TTL Speedlites
  • PC sync port
• Remote:
  • N3 remote port
  • TC-80N3, RS-80N3
  • wireless remotes (RC-6)
  • operation via smartphone
• Other Notable Features:
  • Bluetooth 5 with NFC
  • Wi-Fi 802.11/b/g/n
  • optional EF mount adapters
  • optional GP-E2 GPS receiver
  • USB 3.2 Gen 2 connectivity
  • HDMI type C connector
  • Multi-function flash shoe
  • optional BG-R20 grip extension, also BG-R20E (ethernet), and BG-R20EP (ethernet/fan)
  • optional WFT-R10 wireless transmitter grip
  • weather sealed to 5D Mark IV level focus bracketing
• Cards:
  • Dual card slot
  • 1 CFexpress Type B
  • 1 SD (UHS-II)
• Battery:
  • LP-E6P
  • will accept previous LP-E6 models
  • 630 shots (CIPA with LCD, 340 with EVF)
  • can be charged via USB
• Size and Weight:
  • 5.4 x 3.9 x 3.5” (138 x 97.5 x 88mm) wide, tall, deep
  • 23.6 ounces (670g no battery, card)
• Colors: Black
• Price: US$3300 body
• Announced: July 17, 2024
• Current Firmware: version 1.0.1 (September 2024)
