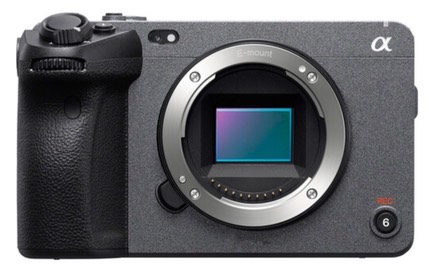

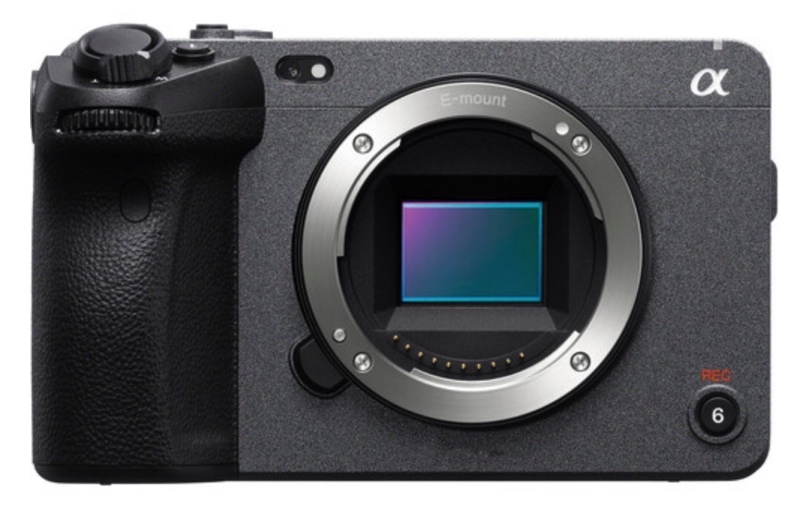

Sony FX30

bythom sony fx30

The FX30 is the same physically as the FX3, but designed with an APS-C image sensor.

  • Sensor
    • 26mp Sony full frame BSI CMOS sensor
    • Exmor R, copper wired
    • 23.5 x 15.6mm
    • no AA filter
    • five axis image stabilization (5.5 stops CIPA), gyro information recorded for post use
  • ISP: BIONZ XR (dual chip)
  • Mount: Sony FE-Mount; E-mount compatible
  • Images:
    • 6192 x 4128 JPEG, plus 10-bit HEIF
    • up to 16-bit ARW raw
    • 3:2, 16:9, 4:3, 1:1 aspect ratios
    • maximum 10 fps continuous (with focus)
    • 1000 frame uncompressed raw buffer with CFe Type A card
  • Video:
    • UHD 3840x2160 at 120/60/50/30/25/24 fps, 10-bit 4:2:2, oversampled from 6K with 1.04x crop except at 120P (1.62x)
    • 1080P 1920x1080 at 240/120/60/50/25/24 fps, 10-bit 4:2:2
    • 1.13x crop with Active IS
    • XAVC HS (Long GOP) up to 10Mbps, S-I (Intra) up to 600Mbps, XAVC-HS up to 200Mbps
    • Can record low bit rate proxy files simultaneously
    • 28Mbps AVCHD with stereo audio; 2 XLR inputs on supplied handle
    • Type A HDMI connector
    • HDMI port output is uncompressed 16-bit, 4:2:2 color, supports 16-bit ProRes Raw up to 60P (requires HDMI 2.1 to an Atomos recorder)
    • Timelapse to 1 fps
    • Full pixel sampling
    • S-Log 2 and S-Log 3, S-Cinetone recording
    • HLG support
  • Shutter:
    • mechanical 30 sec to 1/8000 sec, bulb?
    • rated to 500k cycles
    • 1/250 flash sync
  • Exposure:
    • multi, center-weighted, spot metering
    • -5 to +5EV exposure compensation
    • 8 white balance settings (plus Auto and Custom)
    • ISO 100-32000 (plus Auto and 50, 102400)
    • video ISO dual base 800/2500
  • Focus:
    • 759 video, 627 still, phase detect focus sites
    • autofocus works in all video modes
    • covers 92% of the image sensor
    • autofocus in light down to -6EV (f/2 lens)
    • customizable focus shift speeds
    • single point, multi-area, face/eye/animal detect, tracking, manual focus override
  • Display:
    • 3” 1.44m dot
    • articulating touch LCD
  • Viewfinder
    • none
  • Flash:
    • hot shoe
    • red-eye reduction, slow sync, rear sync
  • Remote: optional RM-VPR1
  • Connectivity:
    • Wi-Fi 802.11ac
    • Bluetooth 5.0 with NFC
    • USB 3.2 Gen 1
    • FTP transfer function
    • Digital Audio Interface (in supplied handle)
    • Headphone out
  • Other:
    • weather-sealed body with passive cooling system
    • optional XLR handle unit
  • Cards:
    • Dual card slot (multiple formats)
    • SD UHS II
    • CFexpress Type A
  • Battery:
    • NP-FZ100
    • ? shots CIPA
    • ? minutes shooting video
    • charge or power via USB Power Delivery
  • Size and weight:
    • 5.1" (129.7mm) wide
    • 3.3" (84.5mm) tall
    • 3" (77.8mm) deep
    • 22.8 ounces (645g with battery, but not XLR handle)
  • Price: US$1800 body only, US$2200 with XLR handle
  • Current Firmware: version 5.00 (September 2024)
  • Announced: September 28, 2022

Sony FE lenses for this camera
