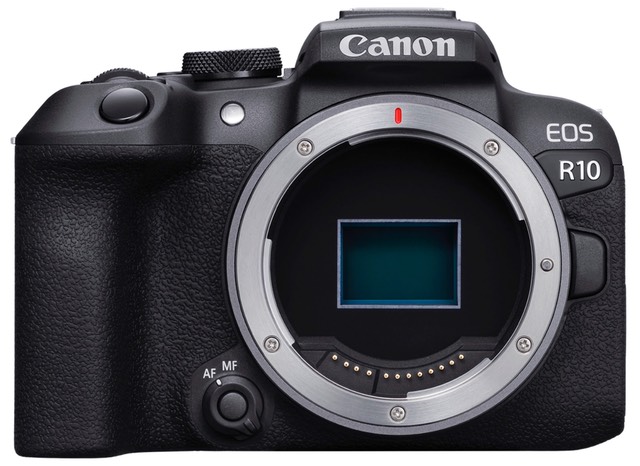

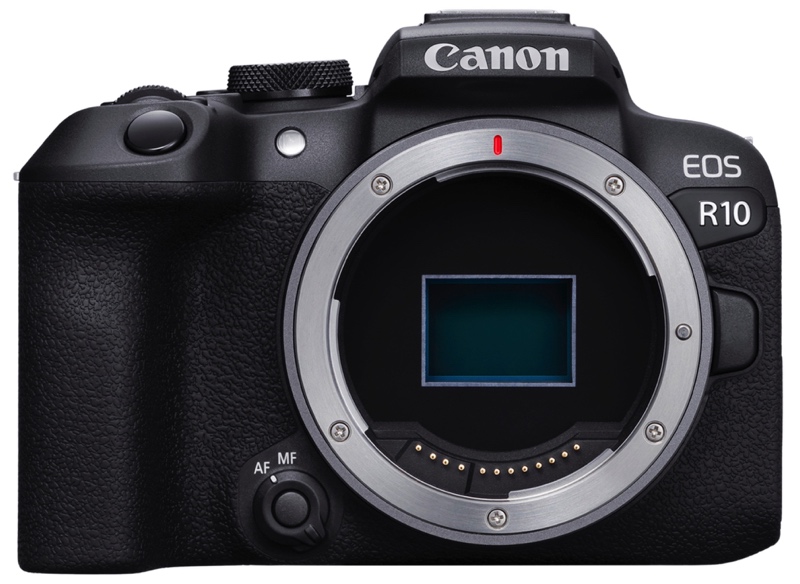

Canon EOS R10

bythom canon r10

The EOS R10 is Canon's entry APS-C mirrorless camera, and uses the RF mount.

  • Sensor
    • 24.2mp FSI CMOS sensor
    • 22.3x14.9mm (APS-C), 1.6x crop
    • Bayer color filtration
    • AA filter
    • sensor-based IS  (? stops CIPA; 8 stops with RF lens IS also enabled)
  • ISP: DIGIC X
  • Mount: Canon RF
  • Image Size/Type:
    • 6000 x 4000 pixel
    • JPEG, HEIF, 14-bit C-RAW, raw
  • File Size: ? JPEG Large Fine ?MB, ? RAW ?MB
  • Continuous Shooting:
    • 15 fps max with mechanical shutter
    • 23 fps with electronic shutter
  • Buffer:
    • 70 frame JPEG buffer at 23 fps
    • 43 frame raw buffer at 23 fps
  • Aspect ratio support: 1:1, 4:3, 3:2, 16:9
  • Internal Video:
    • 4K/30P oversampled from 6K
    • 4K/60/50/30/25/24P, 60P is with crop
    • 1080P/120/60/50/30/25/24
    • H.264/H.265 in MP4 format; H.264 is 4:2:0 8-bit, H.265 is 4:2:2 10-bit
    • IPB compression
    • 10-bit 4:2:2 recorded internally
    • AAC or PCM stereo sound
    • note IS is 5 stops and produces a slight crop
  • External Video: ?
  • Shutter:
    • mechanical and electronic front curtain 30 sec to 1/4,000 sec, bulb
    • electronic shutter 30 sec to 1/16000
  • Exposure:
    • matrix, center-weighted, spot metering
    • 3 to +3EV exposure compensation
    •  white balance settings (plus Auto, Custom)
    • ISO 100-32000 (+51200, AutoISO)
  • Focus:
    • 651 selectable point (4503 positions)
    • hybrid dual pixel phase detect/contrast detect
    • single area, multi-area, face tracking, eye/head/animal detect AF, manual focus override
    • -6.5 to 20 EV focusing
    • focus coverage near 100%/100% vertical/horizontal
  • Rear Display:
    • 3” 1.04m dot
    • articulating touch-screen LCD
  • Viewfinder
    • 2.36m dot OLED EVF
    • .72x magnification
    • 22mm eyepoint
    • -3 to +1 diopter
  • Flash:
    • built-in pop-up flash (GN 6m)
    • hot shoe (extra connections for accessories)
    • 1/250 flash sync
    • will work with other Canon E-TTL Speedlites
  • Other Notable Features:
    • Bluetooth 4.2LE
    • Wi-Fi 802.11/b/g/n
    • optional EF mount adapters
    • USB 2.0
    • HDMI micro connector
    • microphone input jack
    • RS-60E3 remote compatible
    • GP-E2 compatible
  • Cards:
    • SD slots
    • UHS-II compatible
  • Battery:
    • LP-E17
    • 350 shots CIPA (monitor; 210 shots viewfinder)
    • can be charged via USB
  • Size and Weight:
    • 4.8 x 3.5 x 3.3” (122.5 x 87.8 x 83.4mm) wide, tall, deep
    • 15.1 ounces (429g, including battery, card)
  • Colors: Black
  • Price:
    • US$979 body only
    • US$1099 with 18-45mm kit lens
  • Announced: May 24, 2022
  • Current Firmware: version 1.0.0
