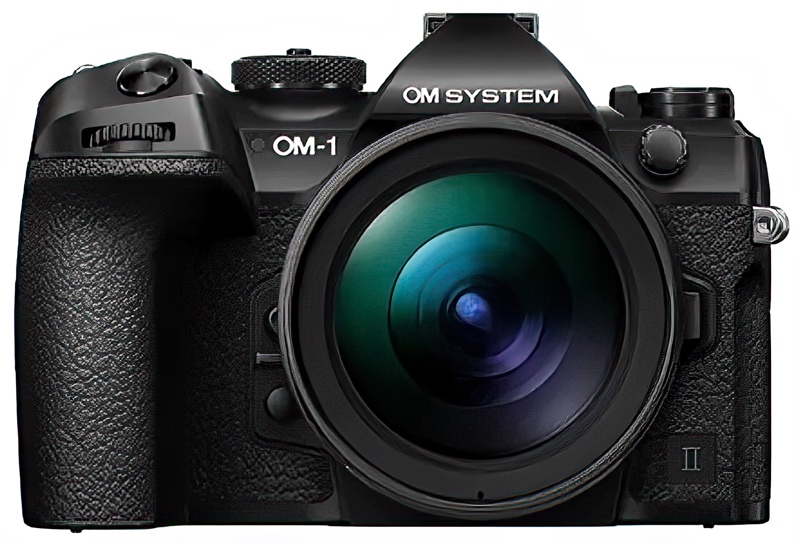

OM Digital Solutions OM-1 II

bythom omdsom1ii

The OM-1 II is the new flagship camera for OM Digital Solutions, the Olympus spin-out.

  • Image Sensor
    • 20.4mp Sony CMOS stacked BSI quad Bayer sensor (IMX472), no AA filter
    • 17.4 x 13mm (2x crop)
    • five-axis sensor stabilization (up to 8.5 stops with lens IS also applied)
  • Processor: TruePic X
  • Mount: Micro 4/3 (m4/3)
  • Images:
    • 5184 x 3888 pixel JPEG or 12-bit ORF maximum
    • 4:3, 3:2, 16:9, 1:1, and 3:4 aspect ratios
    • 256 frame minimum raw buffer (50 fps)
    • 213 frame minimum buffer (120 fps electronic, single AF)
    • 50mp high-res multi-shot handheld mode and 80mp high-res multi-shot tripod mode, now 14-bit
  • Video:
    • 4K (including DCI) 24/25/30/50/60P, H.264 longGOP 202Mbps max
    • 4K (including DCI) 24/25/30/50/60P, H.265 longGOP 152Mbps max
    • 1080P 24/25/30/50/60, H.264 longGOP 52Mbps max
    • 1080P 100/120/200/240, MPEG-4 H.264 (up to 200 with H.265)
    • Timelapse
  • Shutter:
    • mechanical 60 sec to 1/8000 sec, bulb (+1 to 30 minute settings, EFCS 60 sec to 1/320 sec)
    • electronic shutter 60 sec to 1/32000 sec
    • tested to 400k activations
    • Live Time
    • Live Composite
  • Exposure:
    • matrix, center-weighted, spot metering (-2EV to 20EV)
    • -5 to +5EV exposure compensation
    • 7 white balance settings (plus Preset K's, Auto and Custom)
    • ISO 80, 102400, plus LOW, AUTO ISO
    • Built in ND filtration to ND128, graduated ND filtration at ND2, 4, or 8
  • Focus:
    • 1053-point Phase detect AF points on sensor (75% vertical, 80% horizontal coverage)
    • single point, small target, cross target, middle target, large target, and custom target AF
    • human, face, car, motorcycle, aircraft, helicopter, train, bird, dog, eye detection AF
    • tracking, manual focus override, focus peaking, starry sky focus, -3.5EV low light ability
    • Focus bracketing, stacking
  • Display:
    • 3" 1.62m dot LCD
    • tilting, touchscreen
  • Viewfinder:
    • 5.76m dot EVF
    • 0.82x magnification
    • 21mm eyepoint
    • -4 to +2 diopter correction
    • 120fps with 6ms lag)
  • Flash:
    • hot shoe
    • 1/250 flash sync (also Super FP to 1/8000)
    • red-eye reduction, slow sync, rear sync, three-level manual
    • PC sync socket
  • Remote: optional RM-CB2
  • Connectivity:
    • Wi-Fi 802.11ac
    • Bluetooth 4.2LE
    • USB-C 3.0
    • microphone, headphone jacks
  • Cards:
    • dual-slot SD, SDHC, SDXC
    • both slots UHS-II
  • Battery:
    • BLX-1 1720mAh
    • 500 shot CIPA
    • USB charging, USB Power Delivery
  • Size and weight:
    •  (134.8mm) wide
    •  (91.6mm) tall
    •  (72.7mm) deep
    •  ounces (599g) including batteries
  • Other: Splashproof build (IP53)
  • Price: US$2399 body only
  • Current Firmware: version 1.0
  • Announced: January 30, 2024

Olympus Lenses for the camera

Panasonic Lenses for the camera
