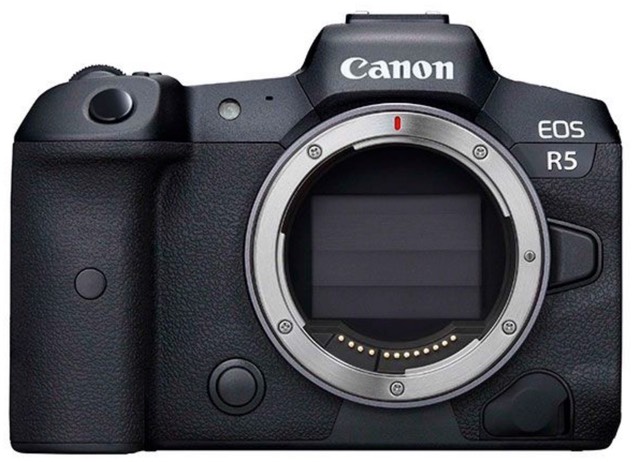

![bythom canon r5](../../../_Media/bythom_canon_r5-3_med.jpeg)
The EOS R5 is Canon's top full frame mirrorless camera, and uses the RF mount.
- Sensor:
- 45mp CMOS sensor
- 35.9x24mm (full frame)
- Bayer color filtration
- AA filter
- sensor-based IS (? stops CIPA; 8 stops with RF lens IS also enabled)
- ISP: DIGIC X
- Mount: Canon RF
- Image Size/Type:
- 8192 x 5464 pixel JPEG
- HEIF
- 14-bit CR3
- C-RAW raw (smaller size); supports HDR PQ
- File Size: ? JPEG Large Fine ?MB, ? RAW ?MB
- Continuous Shooting:
- 12 fps max with mechanical shutter
- 20 fps with electronic (silent) shutter
- Buffer:
- 350 frame JPEG (CFe)
- 180 frame max raw buffer (CFe)
- Aspect ratio support: 1:1, 4:3, 3:2, 16:9, 1.6x crop
- Internal Video:
- 8K/25/30 (no crop, 12-bit raw internal)
- 4K/120/60/50/30/25/24 (no crop (oversampled)
- 10-bit 4:2:2 C-Log; uncompressed 4K/60 over HDMI
- 1080P/60/50/30/25/24 max 60Mbps
- ALL-I (requires CFe card)
- IPB compression H.265 in MP4 format
- AAC or PCM stereo sound
- note IS is 5 stops in video and performs a slight crop
- External Video: 8-bit 4:2:2 4K output on HDMI port
- Shutter:
- mechanical 30 sec to 1/8,000 sec, bulb
- tested to 500k cycles
- Exposure:
- matrix, center-weighted, spot metering
- -3 to +3EV exposure compensation
- 6 white balance settings (plus Auto, Custom)
- ISO 100-51200 (+50, 102400, AutoISO)
- Focus:
- 5940-point (1053-large point)
- hybrid dual pixel phase detect/contrast detect
- single area, multi-area, face tracking, eye/head/animal detect AF, manual focus override
- -6 to 20 EV focusing
- focus coverage near 100%/100% vertical/horizontal
- focus bracketing
- Rear Display: 3.2” 2.1m dot articulating touch-screen LCD
- Viewfinder:
- 5.76m dot OLED EVF
- .76x magnification
- 23mm eyepoint
- -4 to +2 diopter
- 120fps refresh possible)
- supports 5x/10x view
- Flash:
- hot shoe
- 1/200 flash sync (mechanical; 1/250 electronic)
- will work with other Canon E-TTL Speedlites
- PC sync port
- Remote:
- N3 remote port
- TC-80N3, RS-80N3
- wireless remotes (RC-6)
- operation via smartphone
- Other Notable Features:
- Bluetooth 5 with NFC
- Wi-Fi 802.11/b/g/n
- optional EF mount adapters
- optional GP-E2 GPS receiver
- USB 3.2 Gen 2 connectivity
- HDMI type C connector
- optional BG-R10 grip extension
- optional WFT-R10 wireless transmitter grip
- weather sealed to 5D Mark IV level focus bracketing
- Cards:
- Dual card slot
- 1 CFexpress Type B
- 1 SD (UHS-II)
- Battery:
- LP-E6NH
- 490 shots (CIPA with LCD, 320 with EVF)
- can be charged via USB
- Size and Weight:
- 5.4 x 3.8 x 3.5” (138 x 97.5 x 88mm) wide, tall, deep
- 26 ounces (738g, including battery, card)
- Colors: Black
- Price:
- US$3899 body
- US$4999 with 24-105mm f/4L lens
- Announced: July 9, 2020
- Current Firmware: version 2.0.0 (March 2024)
