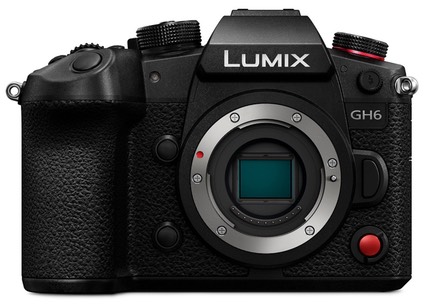

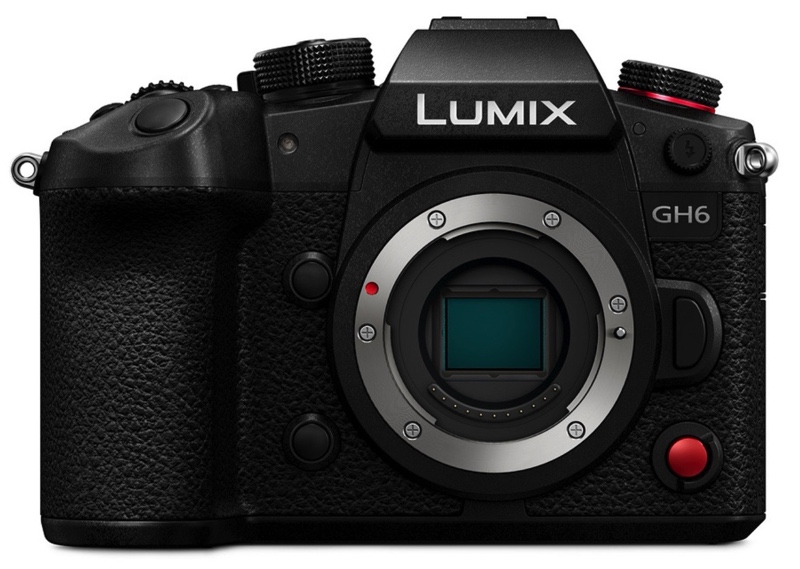

An update of the favorite m4/3 video+stills camera, including 5.7K video and much better video performance even in 1080P. Dual video record buttons and tally lights. Body is weather sealed (splash, dust, freeze-proof).
- Image Sensor:
- 25.2mp MOS sensor
- 17.3 x 13mm (m4/3, 2x crop)
- on-sensor image stabilization (7.5 stops CIPA)
- no low pass filter
- Image Processor:
- Venus
- Images:
- 5776x4336 JPEG or RAW
- 4:3, 3:2, 16:9, 1:1 aspect ratio support
- Max 8 fps with mechanical shutter and full focus/exposure (14 fps without focus)
- Max 14 fps with electronic shutter and full focus/exposure
- Special 20/60/75 fps modes
- Minimum buffer 40 images with RAW+JPEG, 50 with RAW, 90 with JPEG
- Video:
- 5.7K 30/60P at 4:2:2 10-bit, ProRes RAW (2.0)
- 2160P/24/25/30/60 (4K) at 4:2:2 10-bit
- 1080P/24/25/30/50/60/120/240 at 4:2:2 10-bit (high frame rates 4:2:0)
- 4:3 video support
- MOV or MP4 container support
- H.264/MPEG-4 AVC, H.265/HVEC, and Apple ProRes compression
- Waveform, LUT view assist, HLG view assist, color bars/tone,
- Anamorphic support (1.3x, 1.33x, 1.5x, 1.8x, 2x)
- headphone, mic jacks (XLR support with DMW-XLR1 accessory)
- Time-lapse
- Shutter:
- mechanical 60 sec to 1/8,000 sec, bulb (tested to 200k activations)
- electronic front curtain (60 sec to 1/2000)
- silent electronic mode available from 60 sec to 1/32,000
- Exposure:
- multi, center-weighted, spot metering
- -5 to +5EV exposure compensation (+3/-3EV video)
- 5 white balance settings (plus Auto and Custom)
- ISO 100-25600, plus extended 50
- Dual ISO (100/800 base) for video
- Focus:
- ? point contrast detect (240 fps) with DFD
- -4EV low light (f/2, ISO 100)
- pinpoint, single point, single-point+, zone, full area, tracking
- face detect, manual focus override, focus peaking, focus stacking
- Display:
- 3.2" TFT LCD
- touch-enabled
- fully articulating
- 1.84m dot
- Viewfinder:
- built-in OLED EVF
- 3.7m dot
- 0.76x magnification
- 21mm eyepoint
- -4 to +3 diopter adjustment
- Flash:
- no built in flash, hot shoe
- 1/250 flash sync
- red-eye reduction, slow sync, rear sync
- wireless flash support
- PC sync socket
- Remote: optional DMW-RS2
- Connectivity:
- Wi-Fi (802.11ac)
- Bluetooth LE (5.0),
- USB-C (3.2 gen 2)
- HDMI Type A (full size)
- Major Accessories: DMW-BGGH5 Battery Grip (US$350), DMW-XLR1 Audio Expansion Unit (US$400)
- Cards:
- Dual slot: 1 CFexpress Type B, one SD
- SD UHS-II support
- Battery:
- DMW-BLK22
- 330 images CIPA worst case, up to 850 with power save/card use
- 40 minute video recording time worst case
- Size and Weight:
- 5.5" (138.5mm) wide
- 4" (100.3mm) tall
- 3.9 (99.6mm) deep
- 29 ounces (823g) with cards and battery
- Colors: Black
- Price: US$2199 body only
- Current Firmware: 2.3 (July 2023)
- Announced: February 21, 2022
