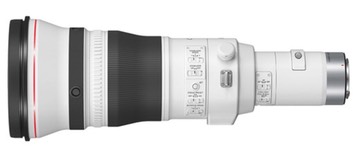

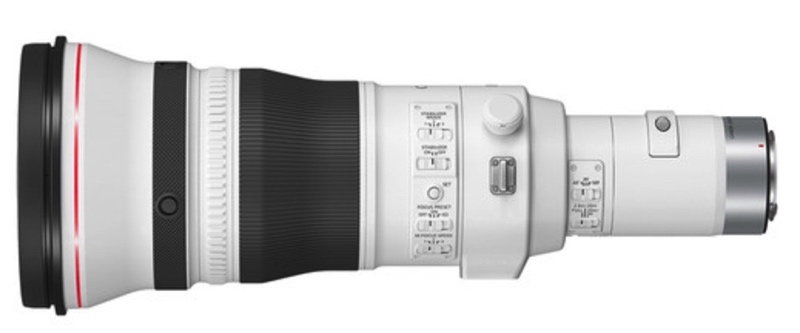

Canon RF 800mm f/5.6L IS USM Lens Specifications

bythom canon 80056

A fast aperture telephoto lens for the Canon RF mount:

  • Coverage: full frame
  • Mount: RF mount, weather sealed
  • Optical Design:
    • 26 elements in 18 groups
    • 1 ULD, 1 SUD, 2 fluorite elements
    • Super Spectra, SW, and Air Spere coating, fluorine front element coating
  • Aperture:
    • F/5.6 to f/64
    • No aperture ring
    • 9-blade rounded aperture diaphragm
  • Stabilization
    • IS (4 stops CIPA)
    • 3 IS modes
  • Filters: 52mm drop-in filter
  • Focus:
    • 8.5' (2.6m) minimum focus
    • 1:2.9 maximum magnification ratio
    • automatic/manual focus by wire
    • Ring-type ultrasonic motor
    • internal focus
  • Size and Weight:
    • 17” (432mm) long
    • 6.4” (163mm) diameter
    • 110.8 ounces (3140g) weight
  • Other: control ring, tripod collar, included ET-155 lens hood, compatible with RF teleconverters, two focus presets; accepts optional short lens hood (ET-155B)
  • Price: US$16,999
  • Announced: February 23, 2022
