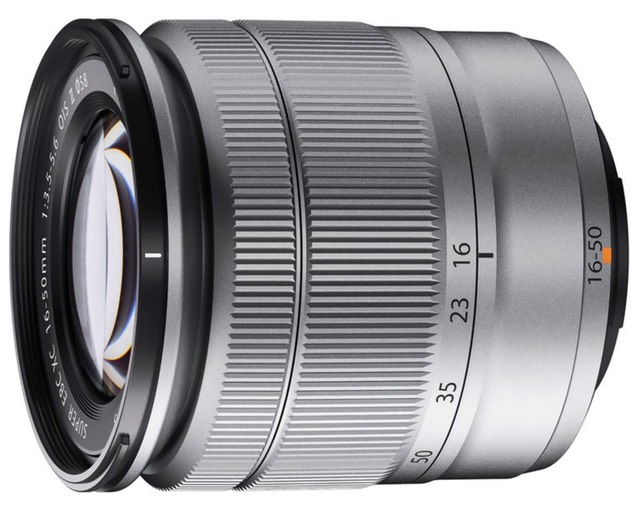

XC 16mm-50mm f/3.5-5.6 OIS II Lens Specifications

bythom fujifilm 16-50mm
  • Coverage: APS-C (1.5x crop)
  • Angle of View: 32 to 83° diagonal
  • Mount: Fujifilm XF
  • Optical Design:
    • 12 elements in 10 groups
    • 3 aspherical, 1 ED elements
  • Aperture:
    • f/3.5 to f/22 at 16mm
    • 7-blade circular diaphragm
    • no aperture ring
  • Image Stabilization: none
  • Focus:
    • 24", 6" macro wide (0.6m, 0.15m macro wide) minimum focus
    • autofocus, internal focus
    • 1:5 maximum magnification
  • Filter Size: 58mm front filter ring
  • Size and Weight:
    • 2.6" (65.2mm) long
    • 2.5" (62.6mm) diameter
    • 6.9 ounces (195g)
  • Other: includes lens hood
  • Price: US$400
  • Announced: January 15, 2015

Notes: The 16-50mm is odd in that it doesn't have a traditional aperture ring. It has a switch on the body to move between Aperture automated by the camera (essentially Program and Shutter-priority in the old-style controls with two dials with an A on them), and your controlling it with the ring. But the ring isn't click stopped, it's a continuous fly-by-wire aperture system, not a mechanically linked one (this, by the way, seems to indicate that Fujifilm might be tinkering with video products in the XF mount; the current cameras aren't good enough at video to require an infinite aperture size ability).

The difference in the new version is closer macro focus.
