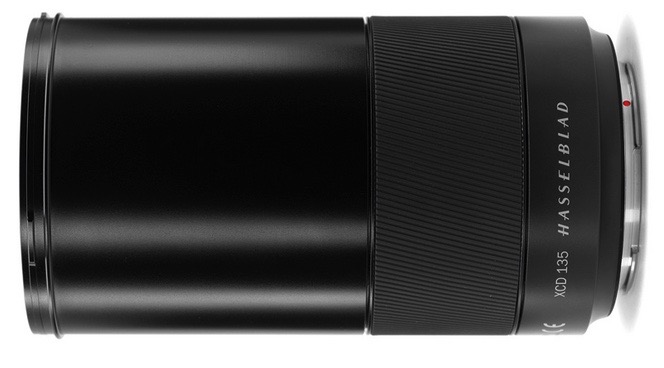

Hasselblad XCD 135mm f/2.8 Lens Specifications

bythom xcd 135mm

A telephoto lens for the Hasselblad X1D camera:

  • Mount: Hasselblad XCD mount (0.79x crop)
  • Optical Design:
    • 10 elements in 9 groups
    • 2 aspherical, 1 ED elements
  • Angle of View:
    • ? degree angle of view (diagonal)
    • 22mm equivalent
  • Aperture:
    •  f/4 to f/32, no aperture ring
    • leaf shutter, 1/4000 sync
  • Image Stabilization: none
  • Focus:
    • 9” (0.22m) minimum focus
    • autofocus, internal focus
    • 1:5.9 maximum magnification
    • DOF markings at f/2.5, and from f/5.6 to f/32
  • Filter: 72mm front filter ring
  • Size and Weight:
    • 1.7" (44mm) long
    • 3" (75mm) diameter
    • 8.6 ounces (245g)
  • Model number
  • Price: US$1680
  • Announced: August 23, 2023

  • autofocus
  • 10 elements in 6 groups
  • equivalent to 105mm focal length on 35mm film
  • 19° angle of view (horizontal)
  • f/2.8 to f/32, ? blade diaphragm
  • Leaf shutter with speeds to 1/2000
  • entrance pupil 57mm in front of image plane (102mm with 1.7x TC)
  • 77mm filter thread, included lens hood
  • supports 1.7x teleconverter
  • 41" (1.05m) minimum focus, 1:5.4 magnification ratio
  • 5.9” (149mm) long, 3.2” (81 mm) diameter
  • 32.3 ounces (935g) weight
  • US$4050 retail
  • Model Number ?
  • Announced September 25, 2018
