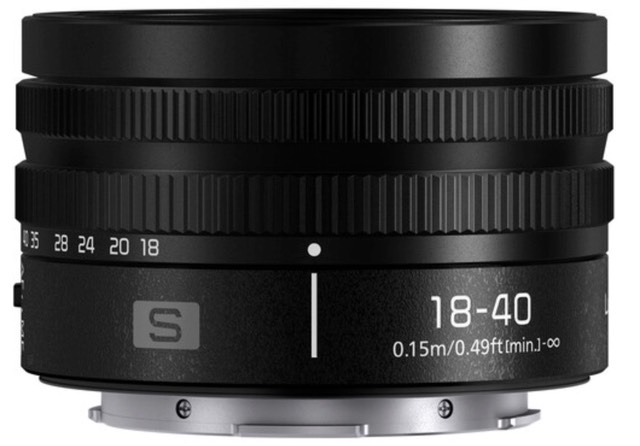

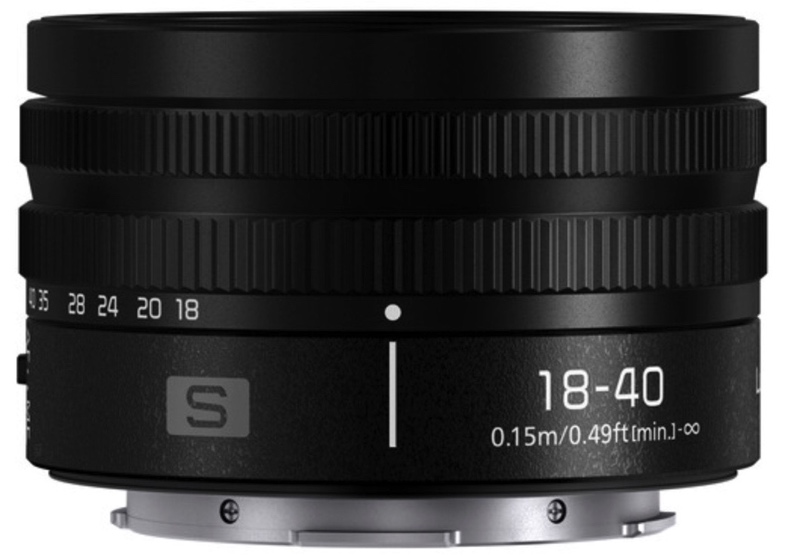

Lumix S 18-40mm f/4.5-6.3 Lens Specifications

bythom panasonic 1840
  • Coverage: full frame
  • Mount: L mount
  • Build Quality: dust-proof, drip-proof build
  • Optical Design:
    • 8 elements in 7 groups
    • 3 aspherical, 2 ED, 1 UHR elements
  • Aperture:
    • f/4.5 to f/22 (at 18mm), no aperture ring
    • 9-blade aperture diaphragm
  • Image stabilization: no image stabilization
  • Filters: 62mm front filter ring
  • Focus:
    • autofocus
    • internal focus
    • minimal focus breathing
    • 6" (.15m) minimum focus (expands to 14" and .35m zoomed in)
    • 1:3.6 magnification ratio (at 21mm)
  • Size and Weight:
    • 1.6" (41mm) long
    • 2.7" (68mm) diameter
    • 5.5 ounces (155g) weight
  • Other: included lens hood
  • Price: US$499 suggested retail
  • Model Number: S-R1480
  • Announced: October 8, 2024
