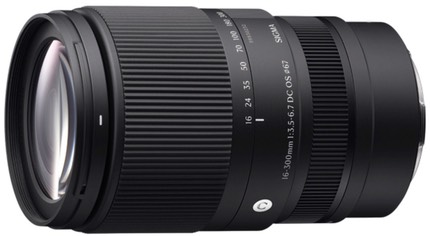

Sigma 16-300mm f/3.5-6.7 OS Contemporary Lens Specifications

bythom sigma 16-300mm

A superzoom lens for crop sensor cameras.

  • Coverage: crop sensor coverage
  • Mounts: Canon RF-S, Fujifilm XF-mount, L-mount, Sony E mount
  • Optical Design:
    • 20 elements in 14 groups
    • 4 aspherical, 4 SLD, 1 FLD elements
  • Image stabilization (4.5 stops CIPA at telephoto end, 6 stops at wide angle end)
  • Apertures:
    • apertures from f/3.5 to f/22 at 16mm (f/45 at 300mm); no aperture ring
    • 9-blade aperture diaphragm
    • No Focus Distance/DOF Markings
  • Filters: 67mm front filter thread, non-rotating on focus
  • Focus:
    • 7" (0.17m) minimum focus at 70mm
    • 1:2 magnification ratio at 70mm (1:3 at 16mm, 1:4 at 300mm)
    • HLA linear autofocus motor
  • Size and Weight (varies with mount; max used here):
    • 4.8” (121.4mm) long
    • 2.9” (73.8mm) diameter
    • 21.7 ounces (615g) weight
  • Build: Black finish
  • Other: Includes LH706-03 lens hood
  • Price: US$700
  • Announced: February 24, 2025
