Nikkor 1 AW 11-27.5mm f/3.5-5.6 Lens Specifications

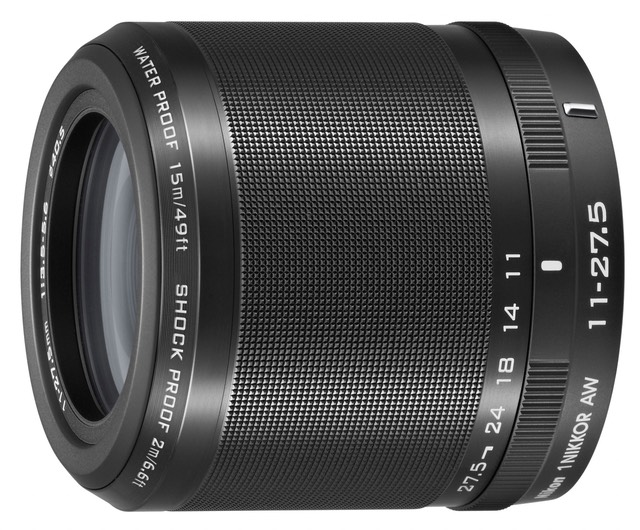

AW11 27.5 BK.jpg

The waterproof version of the 11-27.5mm lens. Only mounts on the AW1 body.

  • CX lens format (Nikon 1); mounts only on AW1 body
  • 8  elements in 6 groups, aspherical and ED elements
  • 32 to 72 diagonal degree angle of view
  • apertures from f/3.5 to f/16 at 11mm, 7-blade rounded diaphragm
  • no image stabilization
  • 12" (0.3m) minimum focus, autofocus, internal focus
  • 40.5mm filter size, optional HB-N103 lens hood
  • 2.2" x 2.4" (56.5 x 63mm) long and diameter
  • 6.5 ounces (182g)
  • available in black, white, silver
  • Model number 3363
  • Announced September 18, 2013, ships ?
  • US$150

Note: Not sure what Nikon was thinking here. The 11mm wide end just isn't wide enough for any underwater use.
